500mm Hydraulic Rebar Shear Line with 42kw Motor

Marca:	GUTE
Cuota De Producción:	1
Precio:	$58,000

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

Sichuan, China

Voltaje:

380V

Dimensión:

30*5*3 m

Fuerza:

42 kilovatios

Peso:

15000 KG

Ancho de vanguardia:

500 mm

Modo de cizallamiento:

el corte hidráulico

Velocidad del rodillo:

0-100m/min ajustable

Longitud de corte máxima:

12m

Longitud mínima de corte:

1.4m

Precisión del corte:

± 5 mm

frecuencia de corte:

≤12n/min

Serie de silo:

Potencia nominal:

42 kW

Peso total:

15T

Espesor de la cuchilla:

40 mm

Resaltar:

500mm hydraulic rebar shear line

42kw motor rebar cutter

heavy-duty rebar shear machine

Descripción del Producto

Factory Outlet Custom Cutting Edge Width 500mm Rebar Shear Line SGS150

Technical Specifications

Cutting Edge Width	500mm
Shearing Mode	Hydraulic shearing
Roller Speed	0-100m/min adjustable
Maximum Shear Length	12m
Minimum Shear Length	1.4m
Shear Accuracy	±5mm
Shear Frequency	≤12n/min
Silo Series	3
Rated Power	42kw
Total Weight	15t
Dimensions (L×W×H)	30m × 5m × 3m
Length Control Mode	Servo

Product Features

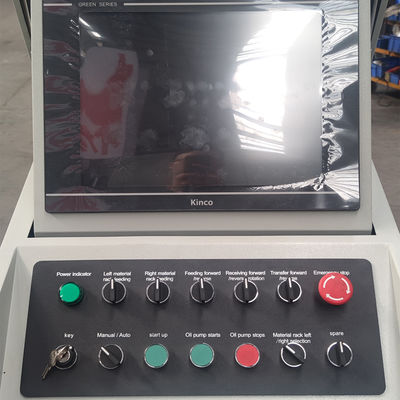

PLC Control System: Ensures high precision shearing for steel bars of various specifications and small batches
24 Fixed Length Plates: Steel plate structure with servo motor for fast and accurate length setting
Large Length Blade Design: Enables simultaneous cutting of multiple reinforcing bars
Centralized Oil Supply System: Guarantees long operational life
3-Level Product Storage: Facilitates efficient collection of multiple products
Thickened/Widened Gears: Provides stable cutting with fully encapsulated shield for enhanced safety
High Strength Spiral Elevator: Ensures precise positioning without deformation
Adjustable Cutting Length: Continuous operation with high-speed conveyance and precise cutting

Key Components

Straightening Structure

Forged alloy tool steel straightening wheels for superior wear and impact resistance
30mm thick steel plate preset wheel plate for high strength and durability

Multi-split Type Blade

Double lifetime compared to standard one-piece blades
Split thickening design with 40mm thickness for extended usability

Servo Motor

16KW high-power servo motor ensures smooth traction operation

Pneumatic Elements

Premium Airtac (Taiwan) components for extended service life

Pay-Off System

2 pay-off units per machine with 2500KG maximum capacity each
Designed for easy disassembly and transportation
Optional brake customization available

Automatic Collector (Optional)

Automatically collects finished stirrups
Adjustable collection quantity for easy packaging

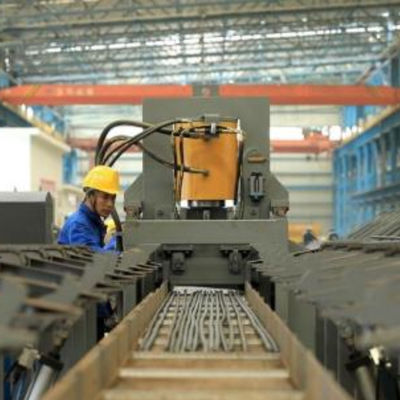

Applications

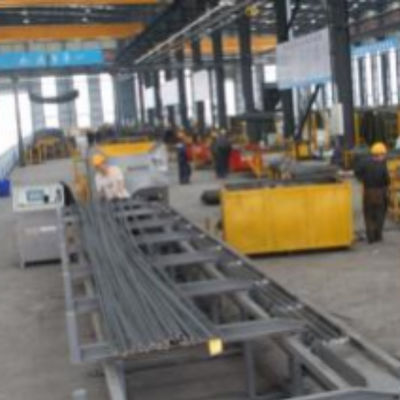

Production Line

Manufacturer Profile

GUTE is a professional manufacturer of construction machinery with 28 years of experience and over 250 skilled workers specializing in steel bar processing equipment.

Exported to more than 70 countries with 70% export share of steel bar bender/cutter machines
200+ agents in Chinese market and 10 owned brand shops across China
OEM provider for many renowned European brands
Global presence in Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, and Middle East
Specializes in reinforcement steel bar bending, shearing, welding, and straightening machines
Expert in R&D and quality control for customized solutions

Transportation

Frequently Asked Questions

Q: What's the production and delivery time?

A: Orders under 5 units are typically in stock with 5-day delivery to Shanghai port. Larger orders require 10-15 working days.

Q: What's the minimum order quantity?

A: Standard MOQ is 5 units. Sample orders of 1 unit are possible with additional port and delivery charges.

Q: What are the departure ports?

A: Primary port is Shanghai, with options for Guangzhou, Qingdao, Tianjin and other Chinese ports.

Q: What's the packaging method?

A: Iron pallets and poly wooden cases (no fumigation required).

Q: What payment terms are available?

A: T/T, L/C, DP, Western Union, PayPal.

Our Service Commitment

24-hour response to all inquiries regarding products or pricing
Complete protection of your sales area, design concepts, and private information
Best quality products with competitive pricing
